About this item

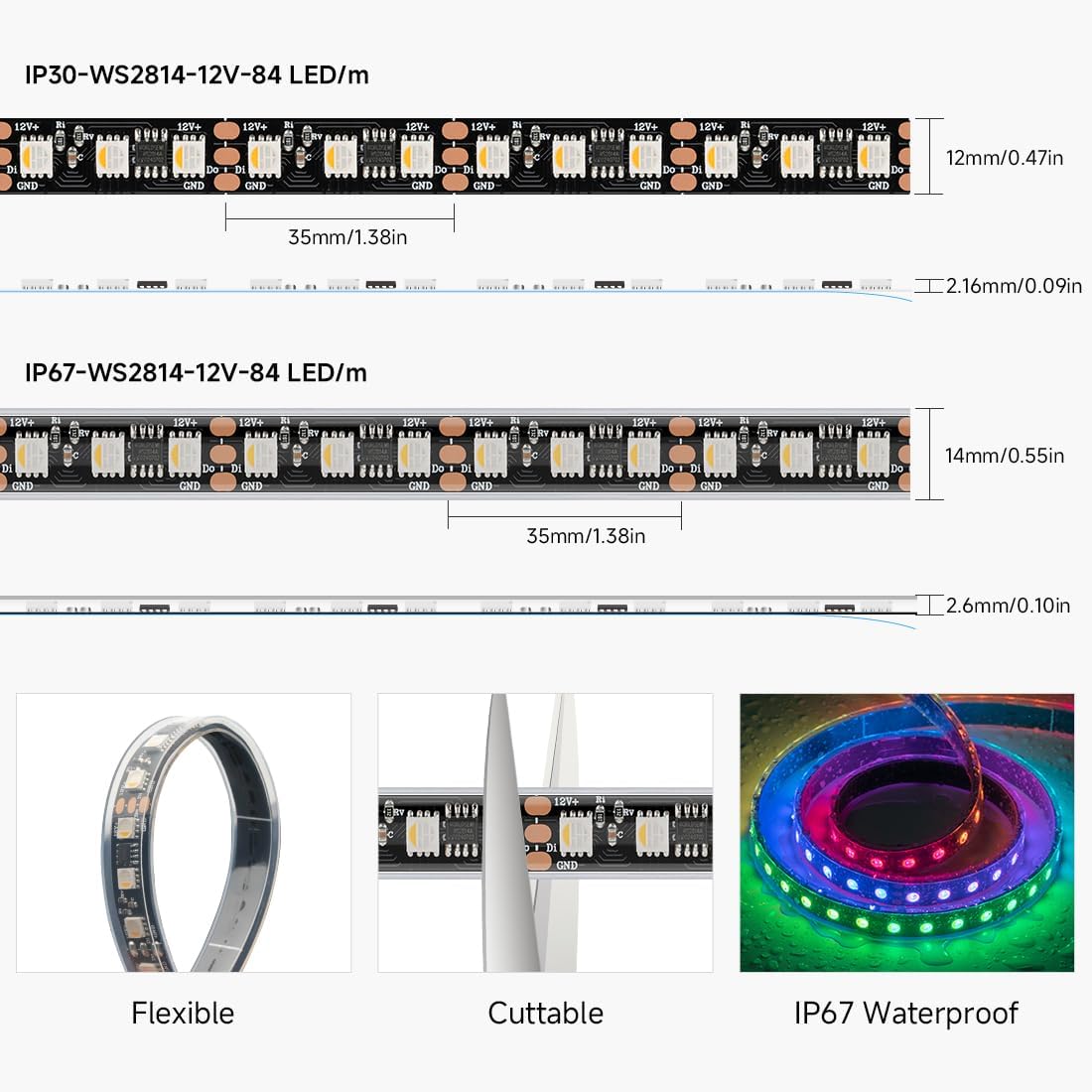

• Addressable WS2814A RGBW IC. WS2814A RGB+Warm White (3000K) 16.4FT 84 LEDs/m 28 Pixels/m 420 LEDs 140 pixels. 210 RGB + 210 Pure White. Addressable groups of three LEDs. One WS2814 IC manages three LEDs. Dream full-color Programmable LED Strip. 5050 SMD. 256 brightness levels and 24-bit color display. Every three LEDs can be cut without harming the rest of the strip. You can freely shorten, lengthen or bend it as desired.

• Chasing RGB+W Lighting Effects. The advantages of pure white: its presence enhances the project’s perfection, resulting in higher energy efficiency with reduced heat consumption. This product allows you to illuminate addressable RGB rainbow colors, pure white light chasing, or static pure white effects. It resolves the voltage drop issue at the end of all white light strip.It is the ideal upgrade to WS2812B RGB or WS2811 RGB.

• Fan and economical LED strip project. Works seamlessly with controllers like SP617E, SP630E, SP530E, etc. You can illuminate a single pure white light; the LED strip is more energy-efficient, extending its lifespan. R+G+B yields mixed white at 0.3W/LED. Pure White: 0.1W/LED. One color (red or green or blue or pure white) at 0.1W/LED. Two colors (red + green) at 0.2W/LED, three colors (red + green + blue = mixed white) at 0.3W/LED. Recommended power supply: DC12V6A 72W. DC12V10A, DC12V30A, and DC12V40A are also compatible.

• Ideal for creating LED screens, LED walls, advertising boards, suitable for hotels, KTV, bars, outdoor advertising signs, festive Christmas or wedding party decorations. IP30 and IP65 models come with double-sided tape on the back for easy sticking to walls or other surfaces as desired. IP67 waterproof models need screws and clips for fixing since there is no double-sided tape on the back. Please pay attention to the LED strip’s color order and the appropriate power supply (do not use DC5V or DC24V to power it).

• Works with SPI RGBW Controllers. Compatible with WLED, K-1000C, Raspberry Pi, ESP-8266, ESP-32, etc. Programmable Controllers. Supports RB3 + SP630E, SP617E, SP530E, SP803E, etc. Bluetooth music controllers, SP530E, DR04W, and other smart 2.4GHz Wi-Fi Alexa music controllers. Power supply or controller is not included in the package and needs to be purchased separately.

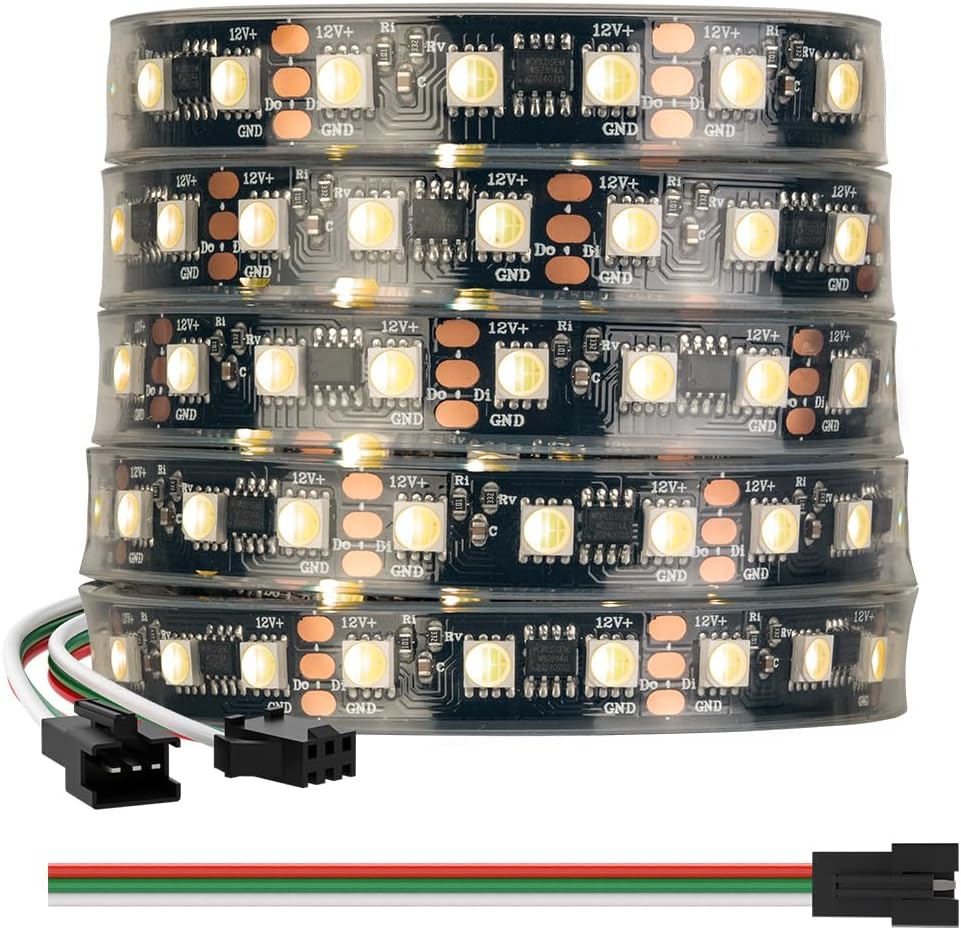

• Recommended power supply: DC12V10A 120W. Package includes: 1X 16.4FT WS2814 RGBW LED Strip, 1X 3-pin male JST connector. The power supply and controller should be bought separately.
