About this item

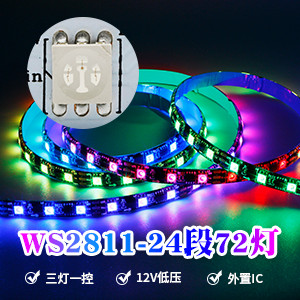

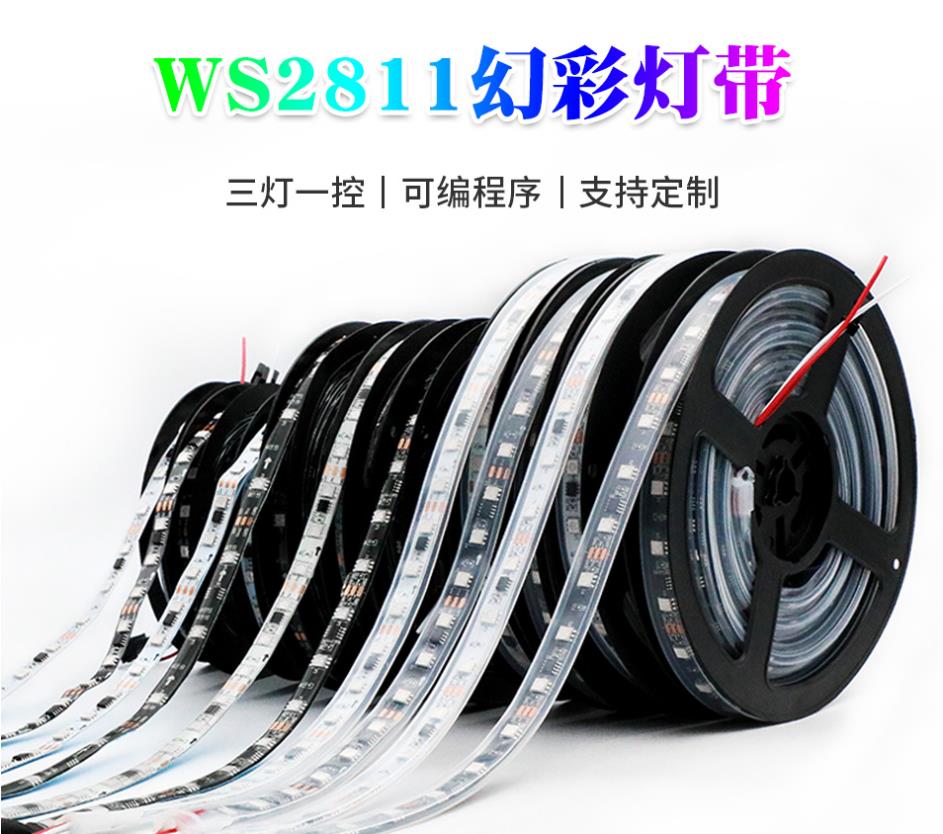

• WS2811 IC=12V RGB-IC. The professional name for this is WS2811. It features addressable groups of 3 LEDs.One. The WS2811 IC manages three LEDs, forming a full color programmable LED strip. It uses 5050 SMD RGB technology, supports 256 levels of brightness, and offers a 24-bit color display. You have the option to cut every 3 LEDs without harming the remaining strip. Feel free to shorten, lengthen, or bend it according to your needs. All RGB-IC strip kits available use the WS2811 IC, although various manufacturers may use different names and color configurations. The color sequence is BRG.

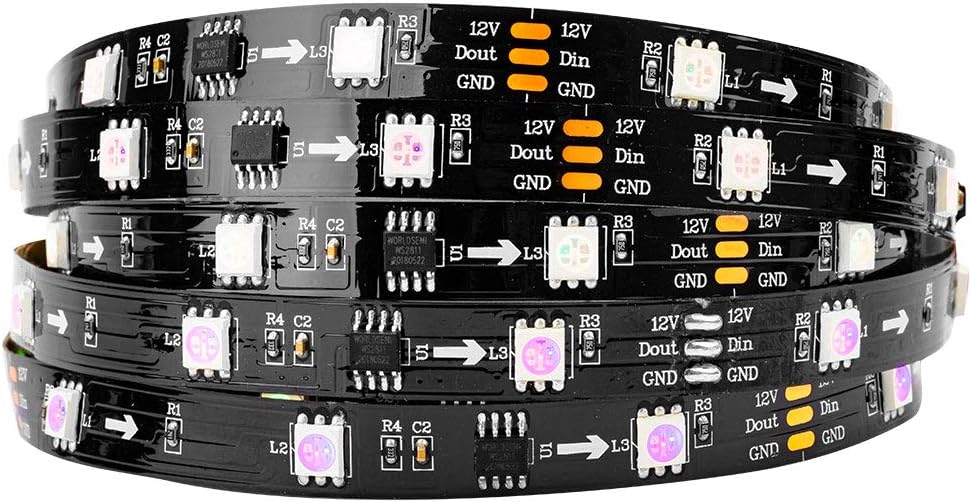

• This product features a flexible PCB board with 3PIN JST-SM connectors on each end for simplified installation as well as connecting LED strips in series. It includes separate power and ground wires on both ends to prevent voltage drop while injecting power. It's compatible with K-1000C, SP611E, SP602E, RB3+SP630E, SP608E Music Bluetooth APP controller, SP530E, and WT-SPI WiFi Alexa Controller.DIY. The compatible controllers include Rasp, R3, Mega, Mini, etc.

• IP30 rated, this product is non-waterproof yet lightweight, and it utilizes double-sided adhesive tape for better adherence. The IP30 version is suitable for various indoor DIY projects. It comes with a one-year warranty, and a 24-hour online support hotline is available for clients in the US for any inquiries. This product pairs well with DC12V WS2811 IC RGB strips on the market but always ensure compatibility regarding color order and power supply requirements.

• A recommended power supply of DC12V4A is suggested. Each 3 LEDs connects to a circuit, allowing for easy cutting or welding. When paired with the correct controller, it can create hundreds of lighting effects, such as colorful curtain-up, flowing water, raindrop, jumping flash, and more. The power consumption of the strip isn't fixed: lighting one color (red, green, or blue, or pure white) consumes 0.1W per LED; lighting two colors (red + green) consumes 0.2W per LED; and lighting three colors (red + green + blue for white) consumes 0.3W per LED.

• This product has a wide range of applications, perfect for creating LED screens, LED walls, advertising boards, and is ideal for hotels, KTVs, bars, advertising signs, or festive decorations for Christmas or weddings. The IP30/IP65 LED strips come with adhesive tape on their back, making it easy to attach to walls or other surfaces. The IP67 version is available and includes fixing clips and screws for installation.

Parameter Table

Product information

Technical Details
